GTCS1Lib:
Tutorial 1: Basic Application Structure

back to the main tutorial guide page .

---

Reference: This is the first tutorial on how to work with the GTCS1Lib library. It is assumed you have some working knowledge of C# (or Java, or C++) and understand the concepts of "objects" in an object-oriented language.

Goals : The following are the important points to note from this tutorial:

• Structure :  we always subclass and override two functions:
• Base class: XNACS1Base we always subclass from this base class.
• Function override: we must always override these two functions: InitializeWorld() and UpdateWorld() .
• Utility Functions/Properties: These are general functions/utilities provided by the library:
• World.SetWorldCooridnate()
• World.SetBackgroundColor()
• EchoToBottomStatus() and EchoToTopStatus()
• World.WorldMax and World.WorldMin :
• Primitive Class: XNACS1Circle the primitive class will be covered in detailed in the next tutorial.

you should be able to follow the first two tutorials and begin programming simple game-like applications with the library.

1. Obtain the example code

• Here is the zip file to the source files and compiled executable of this example.
• Here is the keyboard mapping for the XBOX 360 controller.
• Here is the main tutorial page for working with GTCS1Lib, and here is the complete documentation of the library: html-page.

Download and unzip the zip file and you will see an ExampleProgram folder. Open the ExampleProgram folder, the EXE folder contains the compiled program and you can double click on the .sln file to work with the source code.

---

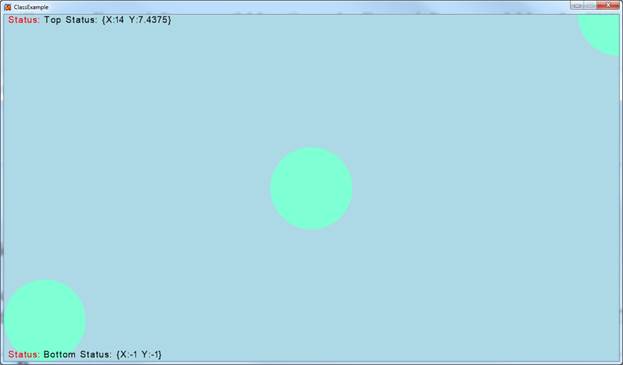

If you double click and run the executable program, you will observe:

---

2. The Source Code Files/Structure

Take a look at the ExampleProgram folder that you have unzipped and you will see:

1. ClassExample.sln : You can open the game project by double clicking on this file.
2. ClassExample folder: this is the folder that contains all the source code and necessary supports to the project. The content of this folder looks like:

Folders/Files	Purposes
ClassExample.csproj	project description file. We will not need to edit or change this file.
Game1.cs	This is is the file that contains the source code to our project. This document will only refer to the source code in from this file.
Program.cs	A dummy container. We do not need to be concerned with the content of this file.
Icon.ico	Image of the top-left corner of the title bar of the application window and when the application window is iconized.
Properties /AssemblyInfo.cs	Contains miscellaneous information on the application. We will not work with this file.
Content/Resources/Fonts/ Arial.spritefont	The font used by our application. This folder and the font file must exist for all of the XGCS1Lib projects.

You will also see the MonoGameLib folder, this folder contains all of the MonoGame support files (for PC), and XGCS1Lib DLL file. This folder is a necessary part of your source code system, without which, your project will not compile!

---

3. Content Build Action:

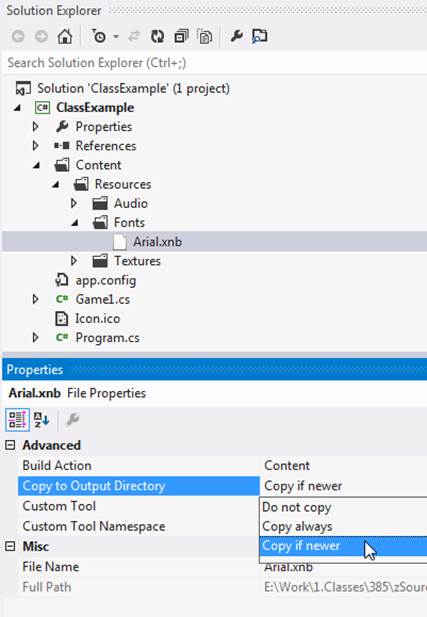

In order to ensure assets (fonts, images, audio files) get compiled and copied over to the execution area, it is essential that you set the build action for each asset files accordingly. For example, for the font file, in the Solution Explore, open the Content/Resources/Fonts folders, and bring up the properties page of the Arial.xnb file:

Notice that:

• Build Action: should be set to Content
• Copy to Output Directory: should be set to Copy if newer

This is an absolutely essential step to go through after adding any new asset (image, audio, etc.) into the project!! Without this step, none of the assets will show up in your game!

---

4. Examine Game1.cs:

Now double click on the Game1.cs file in the SolutionExplorer , and you will see this structure:

#region Reference to system libraries

// Label A: Reference to GTCS1Lib
using GTCS1Lib;

namespace GTCS1Lib_Start {
/// Label B: Subclass from XNACS1Base
public class Game1 : XNACS1Base {

// Label C: InitializeWorld() function
protected override void InitializeWorld() ...

// Label D: UpdateWorld() function
protected override void UpdateWorld() ...

    }
}

• Label A: this is the reference to the GTCS1Lib library.
• Label B: Game1 is our application, and we always subclass from the XNACS1Base base class.
• Label C: InitializeWorld() function is override. This is where our application initializes the game world . This function is called once (and only once) at the beginning of the application.
• Label D: UpdateWorld() function is override. This is where our application updates the world by interacting all objects and reacting to user's input. This function is called by the GTCS1Lib library 40 times per second.

---

5. The InitializeWorld() function:

If we examine the InitializeWorld() function, this is what we will observe:

       // Label C: InitializeWorld() function
protected override void InitializeWorld()  {

// 1. Set the coordinate system to work with
World.SetWorldCoordinate(new Vector2(-1.0f, -1.0f), 15.0f);

// 2. Set the background color
World.SetBackgroundColor(Color.LightBlue);
            ...

// 3. Create 3 circles
pos = ( World.WorldMax + World.WorldMin) / 2.0f;
XNACS1Circle center = new XNACS1Circle(pos, 1.0f);
pos = new Vector2 (0, 0);
XNACS1Circle LowerLeft = new XNACS1Circle(pos, 1.0f);
pos = World. WorldMax;
XNACS1Circle UpperRight = new XNACS1Circle(pos, 1.0f);
        }

Three tasks are accomplished:

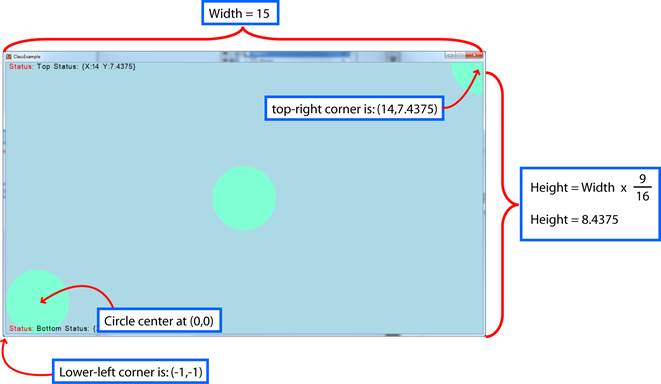

1. SetWorldCoordinate() : defines the coordinate position for the lower-left corner and the width of the application window. As illustrated in the following figure, in this case, we define the lower-left corner to coordinate location (-1, -1) , and the width of the application window to be 15 units wide.

2. Notice three important points
• Pixel-independent coordinate system : Notice that as programmers, we will operate with in the coordinate system we defined and we do not have to be concerned with the underlying pixel-resolution of the application window. For example, in this case, independent form the pixel-resolution of the application window, we can simply work in an area where the lower-loft corner is (-1,-1) with a width of 15.
• Fixed aspect ratio : To properly support HDTV (for running on the XBOX 360 gaming console), the aspect ratio of the application window is always 16:9. This means we do not have the option of defining the height of our coordinate system. In the given example, as illustrated in the above figure, we defined the width of the application window to be 15 units, and because of 16:9 aspect ratio, the height will be 8.4375 units.
• Fixed application window size : For sake of simplicity, the application window's dimension is defined with respect to the PC's screen: our application window always occupies 95% of the entire PC's screen width.
3. SetBackgroundColor() : Sets background color for the application. In this case, the background color is set to light blue.
4. Define circles : Here we define three circles with the XNACS1Circle utility class. We will learn about this circle class in much more details in the next tutorial. For now, we just need to know that the the XNACS1Circle constructor expects the center position and radius of the circle. Notice that:
• WorldMax and WorldMin properties returning the lower-left and upper-right coordinate positions. In this case, notice the center position of the first circle is defined as, pos:

pos = (World.WorldMax + World.WorldMin) / 2.0f;
XNACS1Circle center = new XNACS1Circle(pos, 1.0f);

in this way, the first circle being defined is located at the x- and y-middle of the application window and has a radius of 1.0f. Recall that the coordinate system we define has a width of 15 unites. Notice that the radius of the circle occupies 1/15 of the width of the application window.

• The second circle being defined:

pos = new Vector2(0, 0);
XNACS1Circle LowerLeft = new XNACS1Circle(pos, 1.0f);

is centered at (0,0) position with radius of 1.0f. Given that the coordinate system we  defined has lower-left corner of (-1, -1), we know the circumference of this second circle will touch the lower and left boundaries of the application window. The second circle created is the one located at the lower left corner.

• The third circle being defined:

pos = World. WorldMax;
XNACS1Circle UpperRight = new XNACS1Circle(pos, 1.0f);

is centered at WorldMax , or top-left corner of the application window with radius of 1.0f. This is the top-left quarter-circle where the center is the top-left corner with three-quarter of this circle outside of the application window.

---

6. The UpdateWorld() function:

If we examine the InitializeWorld() function, this is what we will observe:

        // Label D: UpdateWorld() function
protected override void UpdateWorld()  {
if (GamePad.ButtonBackClicked())
this.Exit();

EchoToTopStatus("Top Status: " + World.WorldMax);
EchoToBottomStatus("Bottom Status: " + World.WorldMin);
        }

Notice that:

• GamePad: we poll the Back button and quits when this button is clicked. Please refer to gamepad to keyboard mapping , the back-button on the gamepad is the "b"-key.
• EchoToTopStatus() and EchoToBottomStatus() functions: print out text messages to the top and bottom status echo areas. These are the two text output functions of the GTCS1Lib library.

---
